Principle and Construction

A Rotary Vacuum Dryer (RVD) is a batch-type indirect heating dryer used for drying heat-sensitive, hygroscopic, or toxic materials that require low-temperature drying under vacuum conditions. It operates on the principle of heat transfer by conduction, where heat is supplied to the jacketed cylindrical shell and transferred to the wet material by contact, while the moisture is removed under vacuum as vapor. The vapor is then condensed and collected separately, ensuring a clean and efficient drying process.

The combination of rotation, vacuum, and gentle agitation ensures uniform drying, reduced drying time, and preservation of product quality. Rotary vacuum dryers are widely used in pharmaceutical, chemical, food, and dye industries for drying materials like powders, granules, pastes, and slurries.

Principle of Operation

The principle of the rotary vacuum dryer is based on indirect heating and vacuum drying.

• Heat is supplied to the material through a jacket or hollow rotary shell using steam, hot water, or thermal oil.
• The drum is rotated continuously, ensuring constant agitation and uniform heat transfer to all particles.
• A vacuum is applied inside the dryer, which lowers the boiling point of water or solvents present in the material. As a result, moisture evaporates at lower temperatures, preventing thermal degradation of heat-sensitive substances.
• The evaporated vapors are drawn out by the vacuum pump, passed through a condenser where they are condensed and collected in a receiver, leaving the dried solid behind.
• This process continues until the desired moisture level is achieved.

Thus, the drying in an RVD occurs due to conduction of heat through the metal wall and evaporation under reduced pressure, making it both efficient and gentle.

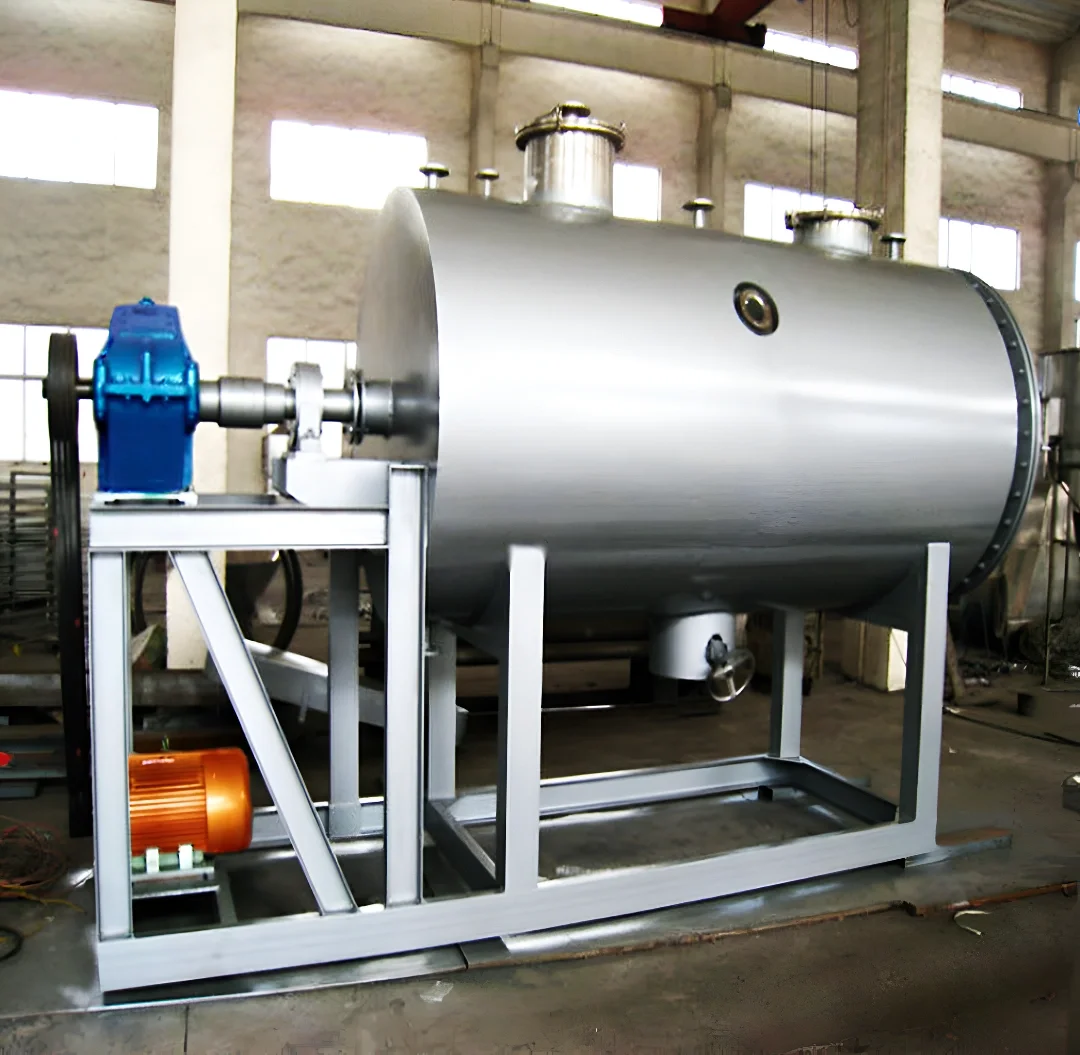

Construction Details

A Rotary Vacuum Dryer primarily consists of the following components:

1. Drying Chamber (Rotating Drum):

The main body of the RVD is a cylindrical horizontal shell made of stainless steel (SS 304 or SS 316) or carbon steel, depending on the product. The shell is jacketed to circulate the heating medium — typically steam, hot water, or thermal oil — which transfers heat through conduction to the wet material inside.

The dryer is mounted on trunnions or bearings and is rotated slowly (5–20 rpm) by a motor and gearbox. The slow rotation ensures continuous tumbling, mixing, and uniform drying of the material.

2. Jacket and Heating System:

The outer shell of the drum is surrounded by a jacket through which the heating medium circulates. The steam inlet and condensate outlet are provided with rotary joints for continuous flow during rotation. The heat conducted through the drum wall raises the temperature of the wet material, causing moisture evaporation.

In some advanced designs, the internal surface of the drum may also contain hollow agitator blades through which steam passes, increasing the heat transfer area and drying rate.

3. Vacuum System:

A vacuum pump is connected to the drying chamber to maintain the desired vacuum level (typically 50 to 100 mm Hg abs). The vacuum lowers the boiling point of the moisture or solvent, allowing evaporation at much lower temperatures — typically 40°C to 80°C, depending on the product and solvent type.

A vacuum line connects to a vapor condenser, where vapors are condensed and collected in a receiver tank. Non-condensable gases are vented out through a trap or vent line.

4. Condensing System:

The vapors generated during drying are drawn out through a vapor outlet and condensed in a shell-and-tube or coil-type condenser using chilled water. The condensate (water or solvent) is collected in a receiver vessel for recovery or disposal. This ensures a closed, clean, and solvent-recoverable drying system.

5. Drive Mechanism:

The dryer is rotated by an electric motor and reduction gearbox connected via chain, belt, or direct coupling. The speed can be adjusted with a variable frequency drive (VFD) to optimize drying time and mixing efficiency.

6. Feed and Discharge System:

The wet material to be dried is loaded through a manhole or feed port provided on the top of the shell. After drying, the product is discharged through an outlet at the bottom, which may have a butterfly valve or screw conveyor arrangement for easy unloading.

The loading is typically 25–50% of the dryer volume, ensuring sufficient space for tumbling and vapor removal.

7. Agitator (Optional):

Some RVDs are equipped with a hollow agitator that rotates with the shell or independently. The agitator continuously moves the material, improving heat transfer, preventing sticking, and ensuring uniform drying.

8. Sealing System:

Since the operation is under vacuum, all joints are vacuum-sealed using mechanical seals or oil seals. The steam inlet, condensate outlet, and vacuum connections are designed with rotary joints to maintain airtight operation during rotation.

9. Instrumentation and Controls:

A modern RVD includes temperature indicators, pressure gauges, vacuum gauges, condensate flow meters, and control valves to regulate the vacuum level, heating medium pressure, and product temperature.
Advanced systems are PLC-controlled for automatic operation, safety interlocks, and batch data logging.
